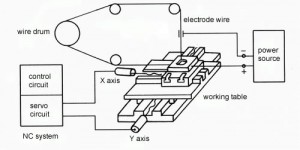

CNC wire cut EDM machine puts impulse voltage between electrode wire and workpiece through impulse source, controlled by servo system, to get a certain gap, and realize impulse discharging in the working liquid between electrode wire and workpiece. Numerous tiny holes appears due to erosion of impulse discharging, and therefore get the needed shape of workpiece( as show in figure 1-1).
Electrode wire is connecting to cathode of impulse power source, and workpiece is connecting to anode of impulse power source. When workpiece is approaching electrode wire in the insulating liquid and gap between them getting small to a certain value, insulating liquid was broken through; very shortly, discharging channel forms, and electrical discharging happens. And release huge high temperature instantaneously, up to more than 10000 degree centigrade, the eroded workpiece is cooling down swiftly in working liquid and flushed away. As show in figure 1-2
Three basic conditions that wire cut EDM work correctly:
